Your #1 Parts Dealer For Water Truck PARTS East of the Mississippi!
Coxreels 1.5"x50'
Coxreels 1.5"x50'
Coxreels 1.5"x50'
Coxreels 1.5"x50'
$966.00

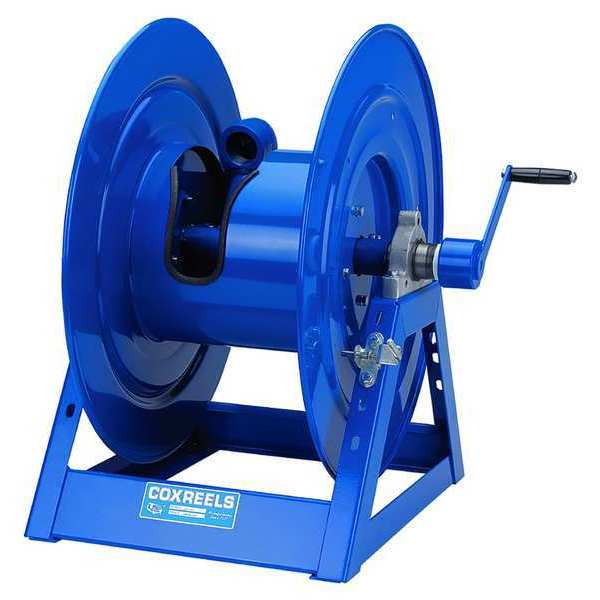

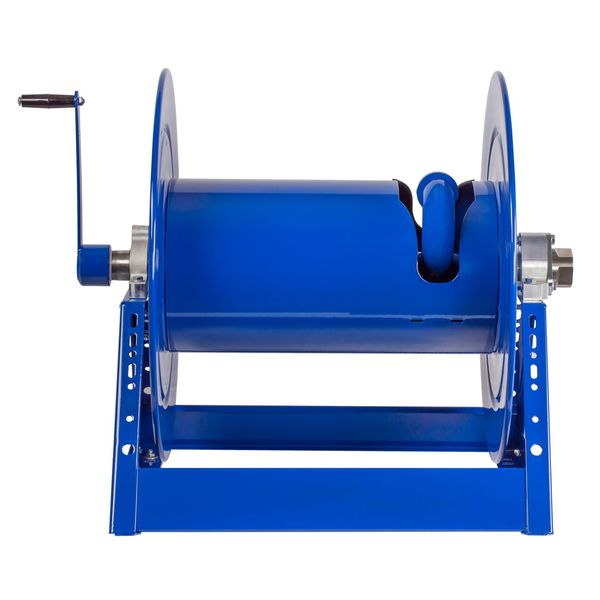

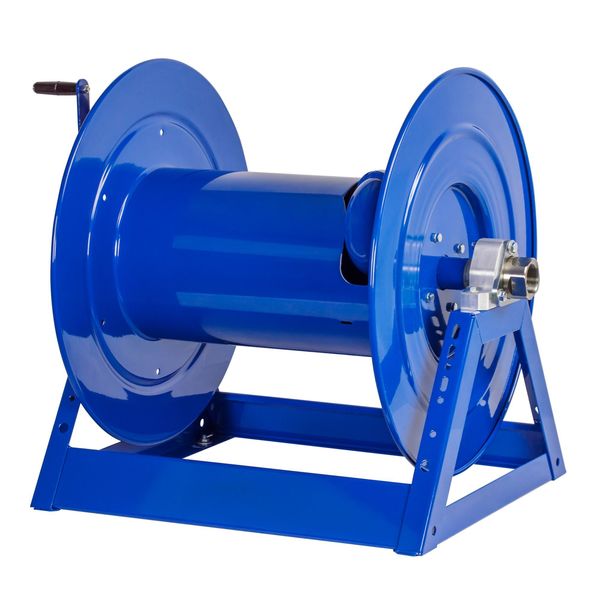

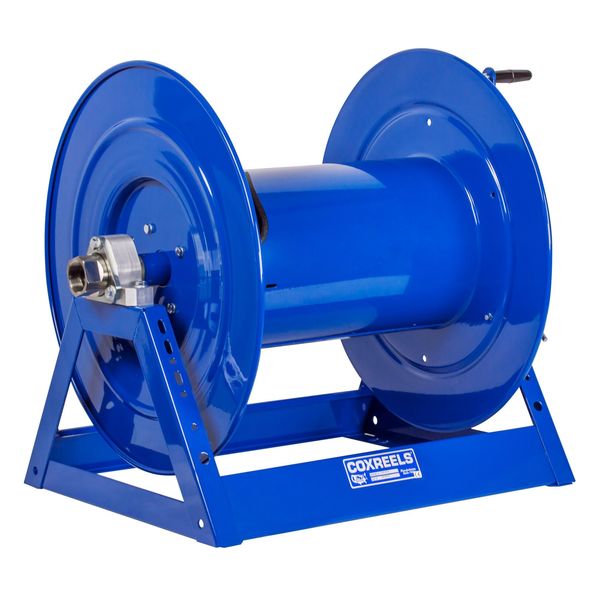

Coxreels 1.5"x50'



Coxreels #1185-1124

Specifications


  • Part #: 1185-1124
  • Hose Reel Primary Application: Bulk Liquid Handling, Chemical Fluid Transfer, Fire Booster Hose, High-Flow Watering, Oil/Lubrication, Water
  • Hose Included: No
  • Hose Length: 50 ft
  • Hose Inside Dia.: 1 1/2 in
  • Reel Inlet: 1-1/2 in (F)NPT
  • Hose Outlet: 1-1/2 in (M)NPT
  • Finish: Powder Coated
  • Duty Rating: Heavy Duty
  • Bearings: Permanently Lubricated
  • Swivel Material: Nickel Plated Steel
  • Drive Type: Hand Crank
  • Mounting: Bench, Floor, Truck, Wall
  • Item: Hand Crank Hose Reel
  • HP: None
  • Housing Material: Steel
  • Hose Ends: 1-1/2 in (M)NPT
  • Hose Outside Dia.: 2 1/16 in
  • Overall Length: 24 in
  • Seal Type: Nitrile
  • Overall Width: 25 in
  • Max. Pressure Rating: 600 psi
  • Color: Blue
  • Application: Air, Water, Oil, High Volume Watering, Bulk Liquid Handling, Fuel Handling
  • Overall Height: 26 in
  • Includes: Locking Pin
  • Swivel Outlet Thread Size: 1 1/2 in
  • Maximum Operating Temperature: 250 Degrees F
  • Includes Hose: No
  • Swivel Outlet Gender: Female
  • For Dual Hose: No
  • Weight: 76 lbs, 82 lbs shipped
  • Mounting Hole Center to Center Height: 16 in
  • Hose Reel Type: Wall Mount Hose Reel
  • Swivel Inlet Type: NPT
  • Mounting Hole Center to Center Width: 15 in
  • Swivel Outlet Size: 1 1/2 in
  • Includes Leader Hose: No
  • Overall Dimensions: 24 in L x 25 in W x 26 in H
  • Mount Base Width: 17 in
  • Features: A Frame, CNC Spun Discs, Professional Grade Heavy Duty Steel Construction
  • Reel Material: Steel
  • Swivel Outlet Type: NPT
  • Fasteners Included: No
  • Base Motion Type: Stationary
  • Seal Material: Nitrile
  • Enclosed: No
  • Includes Gooseneck: Yes
  • Mount Base Height: 22 1/4 in
  • Reel Diameter: 10 1/2 in
  • Bearing Construction: PTFE
  • Maximum Operating Pressure: 1,500 psi
  • Reel Color: Blue
  • Minimum Operating Temperature: -40 Degrees F
  • Handle Length: 3 1/2 in
  • Swivel Inlet Gender: Female
  • Swivel Inlet Thread Size: 1 1/2 in
  • Hose Capacity: 50 ft (1 1/2 in I.D.)
  • Mount Hole Diameter: 1/2 in
  • Reel Width: 11 1/2 in
  • Number of Mount Holes: 8
  • Swivel Inlet Size: 1 1/2 in
  • Reel Finish: Powder Coated
