Specifications

• Part #: 1125-5-50
• Hose Reel Primary Application: Air, Chemical Fluid Transfer, Fire Booster Hose, Hydro Seeding, Oil/Lubrication, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water
• Hose Included: No
• Hose Length: 50 ft
• Hose Inside Dia.: 3/4 in
• Reel Inlet: 3/4 in (F)NPT
• Hose Outlet: 3/4 in (M)NPT
• Finish: Powder Coated
• Duty Rating: Heavy Duty
• Drive Type: Hand

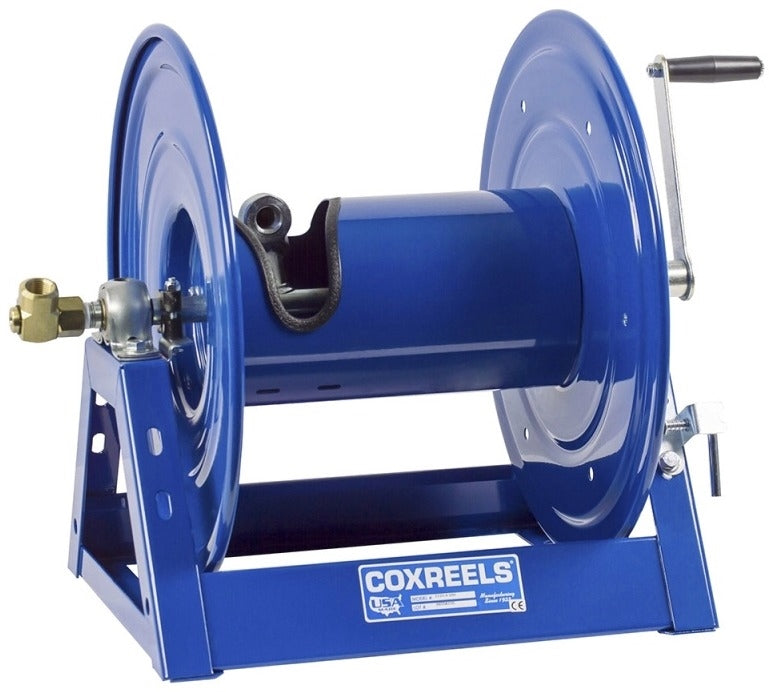

• Item: Hand Crank Hose Reel
• Housing Material: Steel
• Bearings: Permanently Lubricated
• HP: None
• Swivel Material: Brass
• Hose Ends: 3/4 in (M)NPT
• Max. Temp. Rating: 275 Degrees F
• Hose Reel Primary Application: Bulk Liquid Handling, Chemical Fluid Transfer, Fire Booster Hose, High-Flow Watering, Oil/Lubrication, Water
• Mounting: Bench, Floor, Truck, Wall
• Max. Pressure Rating: 3000 psi
• Seal Type: Nitrile
• Color: Blue
• Overall Length: 17 5/8 in
• Hose Outside Dia.: 1 1/4 in
• Overall Width: 20 3/4 in
• Overall Height: 18 3/4 in
• Includes: Locking Pin
• Swivel Outlet Gender: Female
• Swivel Outlet Type: NPT
• Swivel Outlet Size: 3/4 in
• Handle Length: 3 1/2 in
• Reel Color: Blue
• Reel Diameter: 6 1/4 in
• For Dual Hose: No
• Enclosed: No
• Hose Capacity: 50 ft (3/4 in I.D.)
• Maximum Operating Pressure: 3,000 psi
• Mounting Hole Center to Center Width: 15 3/8 in
• Swivel Outlet Thread Size: 3/4 in
• Swivel Inlet Thread Size: 3/4 in
• Includes Hose: No
• Weight: 37 lbs shipping weight is 42 lbs
• Mounting Hole Center to Center Height: 10 in
• Bearing Construction: Permanently Lubricated
• Seal Material: Nitrile
• Mount Base Width: 17 3/8 in
• Features: "A" Frame, CNC Spun Disc, Heavy Duty Steel Construction, Outlet Riser
• Reel Material: Steel
• Base Motion Type: Stationary
• Hose Reel Type: Wall Mount Hose Reel
• Swivel Inlet Size: 3/4 in
• Number of Mount Holes: 6
• Swivel Inlet Type: NPT
• Minimum Operating Temperature: -40 Degrees F
• Fasteners Included: No
• Includes Gooseneck: Yes
• Overall Dimensions: 17 5/8 in L x 20 3/4 in W x 18 3/4 in H
• Reel Finish: Powder Coated
• Mount Base Height: 15 3/8 in
• Reel Width: 12 in
• Mount Hole Diameter: 1/2 in
• Includes Leader Hose: No
• Maximum Operating Temperature: 250 Degrees F
• Swivel Inlet Gender: Female
